Inner Diameter Cool-down Tech: A Deep Dive into Quartz Heat-Transfer Dynamics
-
Introduction

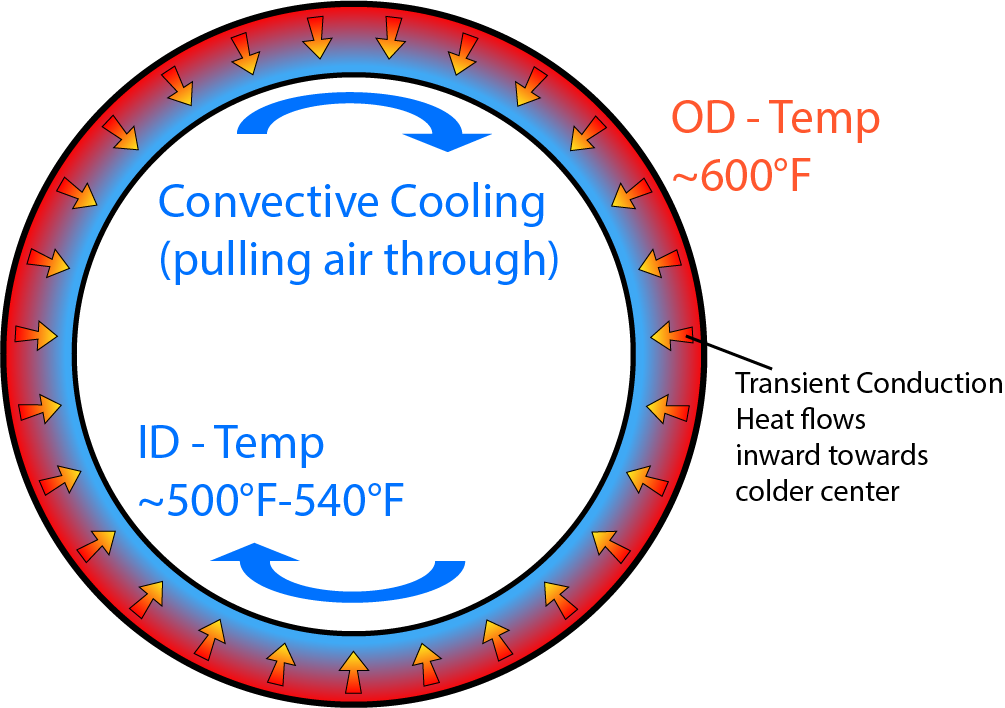

Control Towers excel at delivering pure, flavorful vapor by first reaching extreme wall temperatures (>1,000 °F) and then slowly cooling to the optimal temperature. But without a way to tame the inner surface diameter, those same high temps can sometimes accidentally scorch the dab, and the throat. The Inner Diameter Cool-down (IDC) Tech leverages transient heat-transfer principles, combining rapid convective cooling inside the tube with the outside conduction, to create a temporary “cool-ID / hot-OD” gradient. Forcing the outward heat to flow inwards faster, at the moment you want it. Below we unpack the physics, characterize the relevant timescales, and provide a step-by-step procedure along with refinements for ultimate consistency.
-
Heat-Transfer Fundamentals
• Fourier’s Law of Conduction Heat flux through a solid wall is
q = –k * (dT/dr)
where
• q is heat flow per area (W/m²)
• k is thermal conductivity (W/m·K)
• dT/dr is the temperature change with radius
• Thermal Diffusivity and Transient Conduction
The rate at which heat spreads through the wall is the diffusivity, alpha, equal to k divided by (density × specific heat).
alpha = k / (rho * cp)
The characteristic “diffusion time” across a wall of thickness L is
diffusion time = L² / alpha
Only after several multiples of diffusion time does the wall temperature become nearly uniform.
-
Transient Conduction in a Quartz Tube Using typical quartz values:
k = 1.4 W/m·K
rho = 2200 kg/m³
cp = 730 J/kg·K
gives
alpha = 1.4 / (2200 * 730) ≈ 8×10⁻⁷ m²/s
For a 2 mm wall (L = 0.002 m):
diffusion time ≈ (0.002)² / (8×10⁻⁷) ≈ 5 s
– At 1× that time (5 s), the inner surface is only about 90% of the outer rise.
– At 6× that time (≈ 30 s), the gradient is under 5% and the wall is almost uniform.
This works both ways, so after about 30 seconds of torching, or 30 seconds of pulling the walls will be near isothermal.
-
Inner-Wall Convective Cooling
When you “dry pull,” room-temperature air flows inside and cools by forced convection:
q_conv = h * (T_wall – T_air)
Typical inside-surface coefficients (h) for a small tube run 50–200 W/m²·K. A few seconds of steady pull drops the inside wall by hundreds of degrees, while the outside stays relatively higher.
-
IDC Tech Method
Heat the quartz to “too hot” (≥ 1000 °F). Turn the torch off, wait until the temperature hits around 700 and begin to pull air through the chamber until your IR thermometer sees the outside fall to ~600 °F. Drop your concentrate and inhale immediately, your inside wall will still be much cooler. Tweak your pull time and flow rate until it’s perfect for your setup.
Timing at 5 s vs. 30 s-
At 5 s (≈ one diffusion time):
• Inner surface is ~90% of outer.
• You still have a strong hot-outside / cooler-inside gradient. -
At 30 s (≈ six diffusion times):
• Gradient shrinks below 5%.
• Inside wall has largely caught up to outside wall, and the cooling benefit drops off. Once you push past several “diffusion times” (≈5 s each) under either boundary condition (heating or cooling), the wall races toward uniformity.
So anywhere between a 5 s -15 s dry-pull is enough to get a useful cool-inside, hot-outside effect, any longer and you start losing it. If you pull “much longer” you’ll only see the gradient shrink, not grow. The sweet spot is between the order of one to three conduction times (≈5s ea), any longer and the ID cannot stay disproportionately cooler than the OD.
-
-
Practical Notes & Refinements
• NO DAMAGED PILLARS – A chipped or damaged pillar is more likely to scratch an ID during a dry pull. If your pillar is damaged we recommend you replace it. If you must use it, do not use it in a dry pull.
• Consistent Pulls – Continuous consistent flow can help you have consistent results.
• Thermometer Feedback – Using an IR thermometer to adjust your OD start temperature will help you fine tune the results.
• Wall Thickness & Flame Power – Thicker walls or bigger flames change the diffusion time and subsequently your ideal pull time, re-calibrate whenever your setup changes.
Conclusion
Inner-Diameter Cool-down Tech is built on straightforward conduction and convection physics. By combining a short, forced-air cool-down inside with a still-hot exterior, you get smoother, flavor-packed hits without dialing back your torch. Armed with an IR thermometer and a solid understanding of your tubes physics you can hit the goldilocks zone every time.
