From Spruce Pine to Your Dab Rig: The Journey of High‑Purity Quartz Nails

When you heat up a quartz nail for a dab, you’re actually using a piece of one of the purest materials on Earth. This vapor-safe quartz glass began as raw crystal in the mountains of North Carolina and underwent a remarkable transformation – from Spruce Pine’s high-purity quartz ore, through intensive purification, to the precision-crafted accessory in your concentrate rig. In this report, we explore the complete supply chain of these high-purity quartz nails. We’ll cover the unique geology and history of the Spruce Pine mining district, the mining and purification processes that yield ultra-pure quartz sand, and how that sand is melted and manufactured into fused quartz products (like the nails made by Highly Educated). Along the way, we’ll explain the material science behind why this quartz is ideal (and safe) for vaporizing cannabis concentrates.

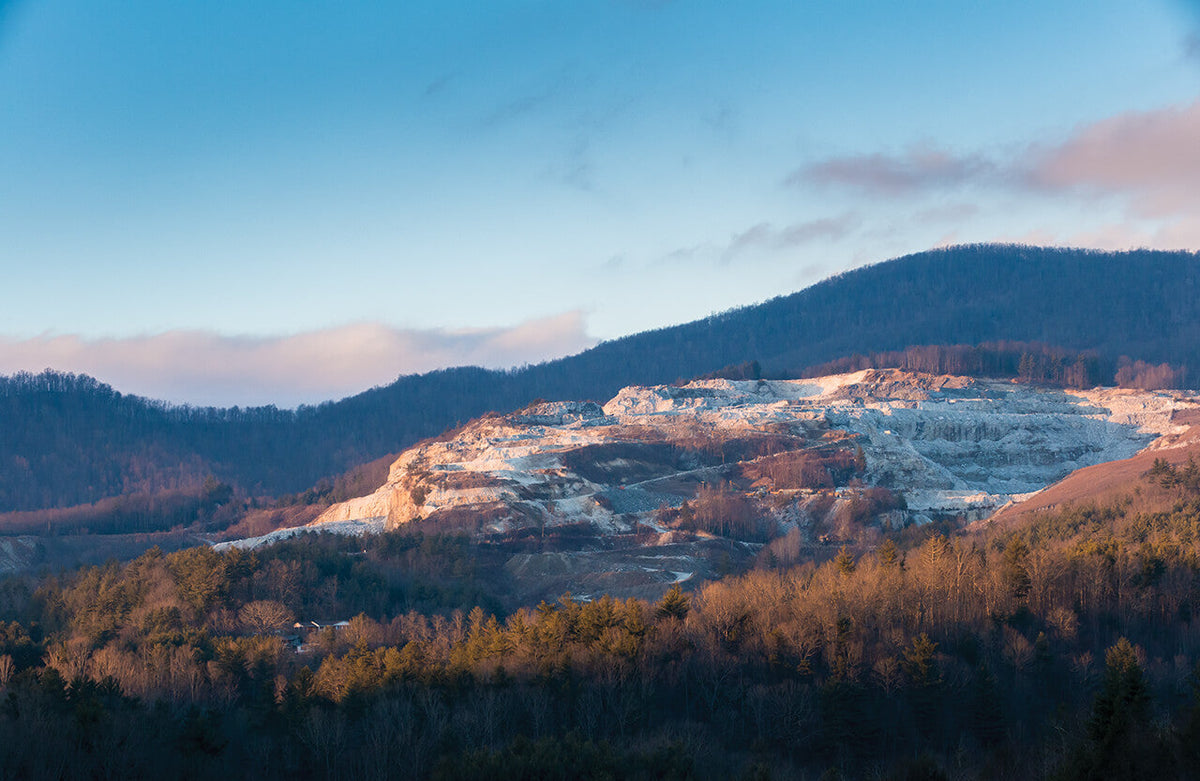

Spruce Pine: Source of the World’s Purest Quartz

Nestled in North Carolina’s Blue Ridge Mountains, Spruce Pine is famous for having the world’s highest quality natural quartz. The region’s unique geology produced granitic pegmatite rocks almost completely free of impurities (thequartzcorp.com). Over 350 million years ago, tectonic collisions formed the Appalachian Mountains and created conditions that crystallized quartz with virtually no contaminating minerals (thequartzcorp.com). The result is an ultra-elite deposit of silicon dioxide – “the purest natural quartz ever found on Earth,” as one geologist put it (wired.com).

This tiny Appalachian community plays an outsized role in global technology. In fact, Spruce Pine is often described as having a “near monopoly” on high-purity quartz. Estimates suggest that 70–90% of the world’s supply of ultra-pure quartz (for industries like semiconductors and solar) comes from two Spruce Pine area mines. “If you want to get high-purity quartz – the kind you need to make those crucibles without which you can’t make silicon wafers – it has to come from Spruce Pine,” writes materials expert Ed Conway. The quartz from these mountains is so pure that it contains 99.99% SiO₂ (4N purity or better) after processing, far beyond ordinary sand or glass. This unparalleled purity made Spruce Pine’s quartz a critical resource for high-tech manufacturing worldwide.

Historical Background: Spruce Pine’s mineral riches were first tapped for mica and feldspar in the early 20th century. During WWII, demand for electrical-grade mica and glass-grade feldspar from the area boomed, and the town prospered. Quartz was initially just a waste byproduct – locals would hand-crush the pegmatite rocks, keeping the mica and feldspar and tossing aside the leftover quartz. That changed when engineers from Corning Glass realized how exceptionally pure the quartz was. By the 1930s, they began hauling Spruce Pine quartz north to use in high-end glass products. A famous example was the 200-inch telescope mirror for California’s Palomar Observatory, cast in the late 1930s: it required “melting mountains of quartz in a giant furnace” – a task made possible by Spruce Pine’s pure silica sand.

By the mid-20th century, the electronics revolution created new demand for Spruce Pine quartz. Transistors and silicon chips require ultra-pure silicon and specialized quartz equipment. In the 1960s and beyond, Spruce Pine became the indispensable source of quartz for making the fused quartz crucibles used to melt silicon for semiconductor wafers. Even a brief disruption in Spruce Pine’s output sends shivers through the tech industry: for example, a fire in 2008 at one quartz plant temporarily “all but shut off” the global supply of high-purity quartz, and a 2024 hurricane that flooded the area raised alarms about the chip supply chain. Today, two companies operate the major Spruce Pine mines – Sibelco (a Belgian mining conglomerate) and The Quartz Corp (a joint venture of Imerys of France and Norsk Mineral of Norway) – and their product remains the gold standard of quartz purity.

Mining High-Purity Quartz in Spruce Pine

Extraction: The mining of Spruce Pine quartz is an impressive operation, given the stringent purity requirements. The deposits are typically accessed by open-pit mining in the mountains. Miners blast and excavate the white quartz-rich rock (pegmatite) from the hillsides, then truck out chunks of quartz ore. Like most silica mining operations, open-pit quarrying is the method of choice (sometimes supplemented by dredging in sand deposits elsewhere). Standard mining equipment – drills, explosives, excavators, and haul trucks – are used to extract and transport the raw quartz. Because the quartz here is in solid rock (not loose sand), the material is first crushed on site to manageable pieces (often 1–20 mm fragments).

Despite being a surface mining process, the environmental footprint is relatively localized. Spruce Pine’s quartz mining does temporarily disturb the immediate area, but since silica is inert and no toxic chemicals are required for basic extraction, the impact is mostly limited to the quarry site. The mountainous terrain means the mines are patchworks of rocky pits and terraces. (Historically, the area also had many small shafts and prospect pits dug by early “wildcat” miners, but modern operations are more consolidated.)

Once mined, the quartz ore looks like milky-white or glassy chunks intermingled with other minerals (feldspar, mica, even trace garnet). In the old days, miners hand-sorted these, but modern operations use mechanical processing to handle large volumes efficiently.

Initial Processing – Crushing and Sorting: The freshly mined ore undergoes several steps to isolate the quartz:

• Primary Crushing: Big lumps are crushed down to gravel-sized pieces (e.g. with jaw crushers or cone crushers). This liberates attached minerals.

• Sizing and Sorting: The crushed material may be sieved and even run past optical or color sorters to pick out the purest quartz pieces. Spruce Pine processors use techniques like automated sorting to remove impure grains, discarding any discolored or gray pieces that indicate contamination.

• Thermal Treatment: One specialized step cited in high-purity processing is calcination and water quenching. The quartz fragments are heated to high temperature and then rapidly cooled in water. This thermal shock can crack off impurities and “expose the impurities between grain boundaries”, making them easier to remove. It also drives out moisture and “water lines” inside the quartz.

• Secondary Crushing: After calcination, the quartz may be milled or crushed finer (e.g. in rod mills or roller crushers) to further separate quartz from any remaining attached gangue minerals.

At this stage, the output is essentially quartz-rich sand or granules, but it’s not yet ultra-pure. It contains leftover “gangue” minerals – primarily feldspars (aluminum silicates), micas, and trace heavy minerals (like iron oxides or garnet). The next phase uses beneficiation processes to remove these impurities.

Purification: Turning Quartz Ore into High-Purity Sand

To achieve the legendary purity of Spruce Pine quartz, the crushed quartz undergoes rigorous beneficiation and purification steps. These processes remove other minerals and metallic impurities, transforming the raw ore into high-purity quartz sand suitable for making fused quartz.

Froth Flotation – Removing Feldspar and Mica: A major breakthrough in Spruce Pine’s history was the adoption of froth flotation to separate minerals. In the 1940s, scientists from the Tennessee Valley Authority and NC State University devised a flotation method that “revolutionized the industry,” turning what was once a mom-and-pop operation into big business. Flotation takes advantage of the fact that different minerals repel or attract water differently. Crushed ore is mixed into a water slurry, and special reagents are added that make mica hydrophobic. When air bubbles are bubbled through the tank, the mica clings to the bubbles and floats off in a froth, which is skimmed away. Successive flotation steps (with other reagents) remove iron-bearing minerals and feldspar in a similar fashion. By the end, the quartz sinks to the bottom while the unwanted mineral froths have been skimmed off. This process cleanly separates the bulk of the non-quartz material. (Spruce Pine’s adoption of froth flotation meant that by the mid-20th century, the once “junk” quartz could be efficiently isolated in large quantities.)

Washing, Magnetic Separation, and Other Physical Methods: In addition to flotation, the quartz sand may be put through other physical purification stages. Washing and desliming removes clays or fine particles. Scrubbing (agitating the sand) helps scour off iron oxide films or clay coatings on the quartz grains. Gravity separation (like spiral chutes or shaking tables) can remove heavier mineral grains due to density differences,

 though this is a minor step.

Magnetic separation is very useful – strong magnets pull out any iron-rich particles (like bits of magnetite or ilmenite, or even iron contaminants from machinery). More than 99% of any “mechanical” iron can be removed by magnets before acid leaching. By the time these steps are done, the quartz sand is extremely pure in a mineralogical sense – mostly SiO₂ grains – but there may still be trace elemental impurities embedded in or on those grains.

Acid Leaching – Chemical Purification: The crowning step in creating ultra-high purity quartz is acid leaching. Quartz is remarkably chemically inert: it doesn’t dissolve in most acids (except hydrofluoric acid), whereas many impurities do dissolve. Processors exploit this by bathing the quartz sand in a sequence of hot acid solutions to dissolve away metals and minor contaminants. A typical leaching flow might use hot HCl (hydrochloric acid) to remove iron oxides and carbonates, H₂SO₄ (sulfuric acid) and oxalic acid to remove e.g. aluminum or further iron, and then HF (hydrofluoric acid) to attack any remaining silicate impurities or metal ions lodged in the silica lattice. The combination of acids is often most effective – one source notes that mixed acid treatments yield better purification than single acids. These acid baths are done in stages, with thorough water rinsing in between, until the quartz is as pure as possible. By the end, impurity levels are measured in parts-per-million or less. For example, refined Spruce Pine quartz can reach >99.997% SiO₂; iron (Fe₂O₃) content can be brought down to mere 0.0005% (5 ppm). In practice, the purified quartz sand concentrate coming out of Spruce Pine is often labeled “4N” or “5N” purity (99.99% to 99.999% SiO₂).

Quality Control: Throughout these steps, producers perform detailed analyses to ensure purity – using microscopes, chemical assays, and instruments to detect trace elements. Only the highest grade material (meeting electronics-grade specs) is sent forward for high-end uses. Lower grade byproducts might be sold for less demanding applications. The final output from Spruce Pine’s processing facilities is an industrial-grade high-purity quartz sand – a fine, white silica powder or sand that is exceptionally pure (often marketed under names like IOTA quartz, etc.). It is this sand that enters the next stage of the supply chain, where it will be melted down into usable quartz glass.

From Sand to Quartz Glass: Fusing Spruce Pine Quartz

Once we have high-purity quartz sand, the next step is to convert this crystalline quartz into a solid glass form that can be shaped into products. Quartz nails are made of fused quartz (also known as fused silica), which is amorphous silicon dioxide glass. In other words, the natural crystal structure is melted and quenched into a non-crystalline glass that retains the same chemical makeup (pure SiO₂).

Melting and Fusing: Converting ultra-pure quartz sand into glass is done in specialty facilities (often by companies separate from the miners). One common method is electrical fusion in a high-temperature furnace. For example, Momentive Performance Materials (formerly General Electric’s quartz division) operates electric fusion furnaces that take Spruce Pine–grade sand and heat it to its melting point of around 1,723 °C. In a continuous process, the sand is poured into a vertical melter (with a refractory metal crucible and electric heating elements) where it liquefies. Because the raw quartz is so pure, the melt can be cooled into transparent, high-purity glass without significant discoloration.

In an electric “direct-draw” process, the molten quartz is drawn out of the furnace through a die to form shapes like rods or tubes. The material that Highly Educated uses for its nails is a grade known as GE 214 clear fused quartz, which is an electrically fused, direct-drawn quartz produced by Momentive. This grade is prized for its excellent consistency, high visual clarity, and 99.99%+ purity. (Other equivalent high-purity quartz glass grades include Heraeus HSQ 100, Philips HPQ, etc., but Highly Educated specifically procures GE 214 from Momentive.)

The result of fusion is lumps, ingots, or blank shapes of quartz glass – typically rods, tubing, or plates. These are clear, glassy forms of SiO₂ with no additives (unlike ordinary glass, which contains sodium, calcium, etc.). Because Spruce Pine sand is so pure, the fused quartz is likewise extremely pure. It also has excellent properties: very low thermal expansion, ability to handle high temperatures, and chemical inertness. These properties are exactly why quartz glass is used in semiconductor fabs (for crucibles, wafers carriers, etc.) and also why it’s ideal for dabbing nails.

One technical consideration in quartz glass is the content of “OH” groups (trapped moisture/hydroxyl). Electric-fused quartz like GE 214 can be produced and post-treated to have very low hydroxyl content (<<10 ppm), which improves its thermal stability. Alternative processes like flame-fusion can introduce more OH (water) into the glass that cannot be baked out, but those methods are usually used with lower-grade sand. High-end quartz nails use the electrically fused quartz for best quality.

Did You Know? Some ultra-pure silica glass is made synthetically by chemical vapor processes (creating “fused silica” from silicon chemicals), which can achieve even higher purity (e.g. for fiber optics). However, for applications like concentrate nails, the natural Spruce Pine–derived fused quartz is more than pure enough and is cost-effective. The purified natural quartz also results in a very durable glass.

Crafting the Quartz Nails by Highly Educated

A high-purity quartz nail by Highly Educated, is made from GE 214 fused quartz. These nails are transparent, virtually flawless SiO₂ glass – engineered for thermal durability and clean vaporization.

Armed with rods and tubes of fused quartz, Highly Educated can create the final forms of concentrate nails. Quartz is hard and brittle, so shaping it requires specialized techniques. There are two general approaches to making a quartz nail:

• Cold working / Precision Machining: Some components can be cut, ground, lapped, water-jet, laser cut, or even CNC machined from solid quartz rods or blanks. Diamond-coated tools or ultrasonic machining can cut and bore the quartz into shapes.

• Hot working / Fusing: Quartz can also be worked by hand or semi-automated torches, albeit at much higher temperatures than normal glass. Skilled glassworkers use oxy-hydrogen torches (since quartz requires ~2000 °C to soften) to fuse quartz pieces. For example, the gavel, which has a bucket (dish) attached to a neck/joint is made with both cold and hot working. It might begin with cutting a small section of rod to create a coin for the base, lapping the coin to remove any marks from cutting, then fusing the coin to a quartz tube,  and fusing on the neck and joint at a 90° angle, cutting the top of the bucket, chamfering, lapping, flame polishing. Our product line includes items and other designs that involve both machining and hand-torch assembly.

Highly Educated's nails are made fully from 99.99% pure fused silica. Every step of fabrication must preserve that purity. The quartz pieces are handled with clean tools to avoid metal contamination. Joints are fused in flame. And after shaping, the nails are annealed (slowly cooled in a kiln) to relieve stresses.

The result is a finished quartz nail – crystal clear, with a mirror-smooth surface. These nails come in various forms, but most are essentially pure quartz glass shaped into a convenient form for heating concentrates.

Vapor-Safe Quartz: Why Purity Matters for Dabbing

For the end user – hash and concentrate enthusiasts – the purity and properties of the quartz nail make a huge difference in the dabbing experience. High-purity fused quartz nails are often called “lab-grade” or “scientific” quartz, and here’s why they are considered vapor-safe and superior:

• Thermal Durability: Pure quartz can be heated to red-hot temperatures (>1000 °F) repeatedly without deforming or cracking, thanks to its high melting point and low thermal expansion. Lower-grade “mystery glass” nails might soften or shatter under a torch. Highly Educated’s GE 214 quartz nails have very uniform material that can withstand the torching needed for vaporizing concentrates.

• Chemical Inertness: Quartz is chemically inert – it won’t react with your concentrates or release noxious fumes. When you heat a quartz banger, you’re not causing any coatings or metals to vaporize; it’s just SiO₂, the same substance as inert glass labware. This means a clean flavor: users prize quartz for delivering the pure taste of the concentrate, with no “off” flavors from the nail.

• No Hazardous Additives: Unlike some glass, pure quartz contains no lead, no heavy metals, no dyes. This is critical because you’re inhaling vapor directly off the heated surface. The “vapor-safe” label essentially means the quartz nail won’t contribute toxins. (One extreme example: a university lab analysis found that a cheap import “quartz” sample was 40% impure carbon! highlyeducatedti.com Such inferior products could burn or release contaminants – a genuine high-purity quartz nail avoids that entirely.)

• Resistance to Devitrification: Devitrification is when quartz glass slowly re-crystallizes on the surface, often appearing as a white, rough, cloudy layer after many heat cycles. Impurities catalyze devitrification. High-purity nails resist this process much longer than low-grade ones. (In other words, a good quartz nail will stay clear and smooth for many uses if cared for.) As we have noted previously, impure quartz has lower temperature resistance and “lifetime failure modes like devitrification are accelerated.” Using the purest quartz delays that cloudy deterioration, keeping the nail safer and more effective.

• Consistency and Performance: Premium quartz nails are manufactured to precise dimensions and finish. This ensures even heating and good retention of heat, which aids in efficient vaporization of concentrates. The visual clarity of pure quartz also helps – you can see the oil vaporize and judge cleanliness.

In summary, the same characteristics that make Spruce Pine quartz vital for semiconductor wafers – extreme purity, high heat tolerance, and stability – also make it the ideal material for dabbing accessories. It can handle the torch’s heat without breaking, won’t contaminate your vapor with anything, and will last through many heating cycles if properly used (e.g. not overheating it empty, and cleaning gently).

Supply Chain Summary: Quartz Nail from Mine to Market

To recap, here is a summary of the stages that take Spruce Pine’s quartz from the mine all the way to a finished concentrate nail:

Each stage in this supply chain is crucial. By the time it reaches your dab rig, the quartz has been through intense refinement – from a rough mountain rock to a laboratory-grade piece of glass. This journey, spanning from an ancient Appalachian deposit to modern glassmaking technology, is what ensures that your quartz nail delivers smooth, flavorful dabs with peace of mind about purity.

Conclusion

The quartz nail in your concentrate setup is far more than a simple piece of glass – it’s the end product of a complex supply chain and a lot of science. It starts with one of the planet’s most unique mineral treasures in Spruce Pine, North Carolina, where geology gifted us quartz so pure that even the cutting-edge chip industry relies on it. Through careful mining and innovative processing (like froth flotation and acid leaching), that raw quartz becomes a 99.99% pure silica sand. Then modern industrial alchemy takes over: melting the sand into fused quartz glass and shaping it into the precise forms demanded by dab enthusiasts. The end result is a vapor-safe, high-performance quartz nail – a product of geology, chemistry, and engineering working in harmony.

So next time you heat up a quartz nail for a dab, take a moment to appreciate its journey. Those clear walls and that shiny bucket were born of an ancient mountain, cleansed by high-tech processes, and fashioned by skilled hands to give you the purest flavor. In every smooth hit, there’s a bit of Spruce Pine’s legacy – a fusion of earth and science that makes the modern concentrate experience possible.

Sources: Information was gathered fromour own blog on American quartz sourcing highlyeducatedti.com, industry and geological reports on Spruce Pine’s mining and processing (including Wired and Z2Data articles on the region’s global importance z2data.com wired.com), and technical resources on high-purity quartz production ftmmachinery.com miningpedia.cn. These connected sources provide detailed insight into each step of the quartz supply chain, from mine to nail. The compiled details offer a comprehensive look at why your quartz nail is special – and why it’s worth its weight in purity alone.
